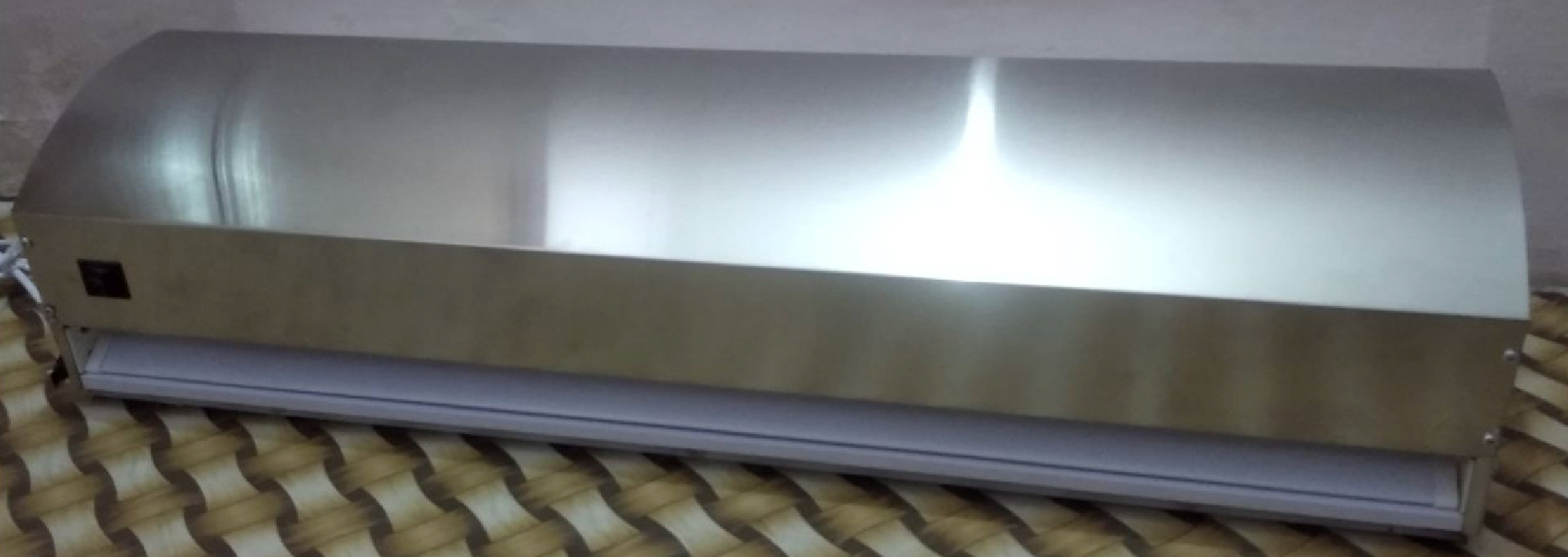

MEI 090 SS3 (3FT)

Product Description

• Standard height of curtain formed : UP TO 8 FT Speed Maximum Air Velocity at Nozzle Discharge (CFM) : High 21 m/s TO 18 M/S • Noise level at a distance of 10’ from the curtain Db : 53 DB • No. of Blower : 3 BLOWERS • No. of Motors : 120w-1 & 80w-1 (2 Motors) • Phase : Single Phase • RPM : 2800 RPM • Air Curtain thickness : 1 mm Body Material : ALL BODY ss304 sleek model • motor No. of Shaft : Double Shaft • Blower : ALUMINIUM • Electrical Motor: 1Single 1 Double shaft • BLOWER : ABS HAVY DUTY • ELECTRICAL MOTOR: MNC BRAND • Maintenance Points for oiling : No require • .%Insect / Dust : 80% • Air Curtain Operation : Electrical • Weight (Approx) Kgs. 15 • Motor HP : 3/4 HP • Motor winding : Cooper winding • Bearing : 2 RS sheel Bearing

Model

MEI 090 SS3 (3FT)

Height

UP TO 8 FT

Price

0

Weight 15Kg
