Product Description
• Standard height of curtain formed : UP TO 8 FT • Speed Maximum Air Velocity at Nozzle Discharge (CFM) : High 21 m/s & low 18 m/s • Noise level at a distance of 10’ from the curtain Db : 53 DB • No. of Blower : 3 BLOWERS • No. of Motors : 120w-1 80W-1 (2 Motors) • Phase : Single Phase • RPM : 2800 RPM • Air Curtain thickness : 1 mm & 1.2MM • Body Material : ALL MS POWDER COATING • motor No. of Shaft : 1 Single, 1 Double Shaft • Blower : ABS • Electrical Motor: MNC ENGINEERING • Maintenance Points for oiling : Not Required • . % Insect / dust rejection : 80% • Air Curtain Operation : Electrical • Weight (Approx) Kgs.15 • Motor HP : 0.20 HP • Motor winding : Cooper winding • Bearing : 2 RS sheel Bearing • Model : Sleek model

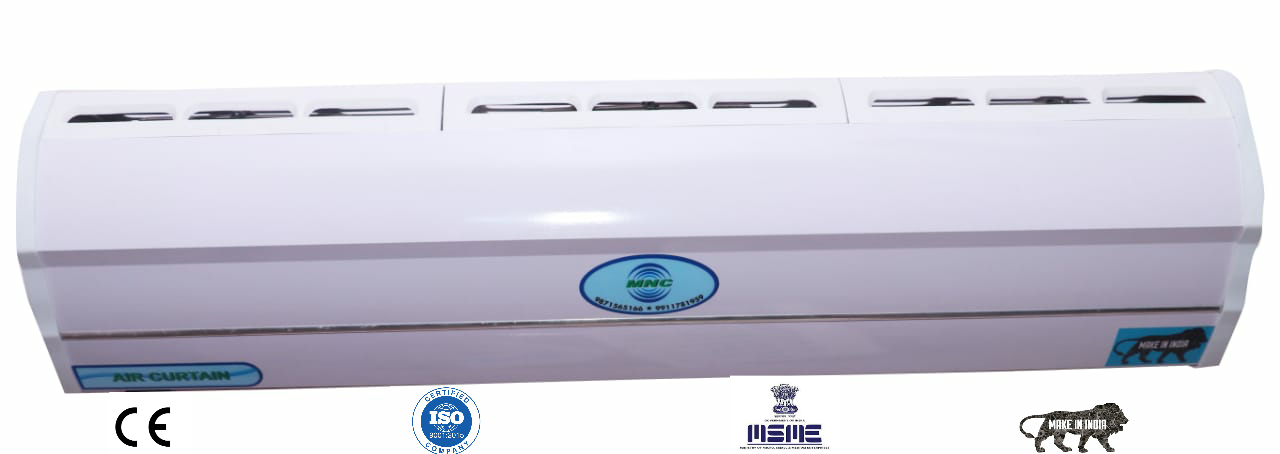

Model MEI 090 CX
Height UP TO 8 FT
Price 0
Weight 15Kg
